Item # 0599B

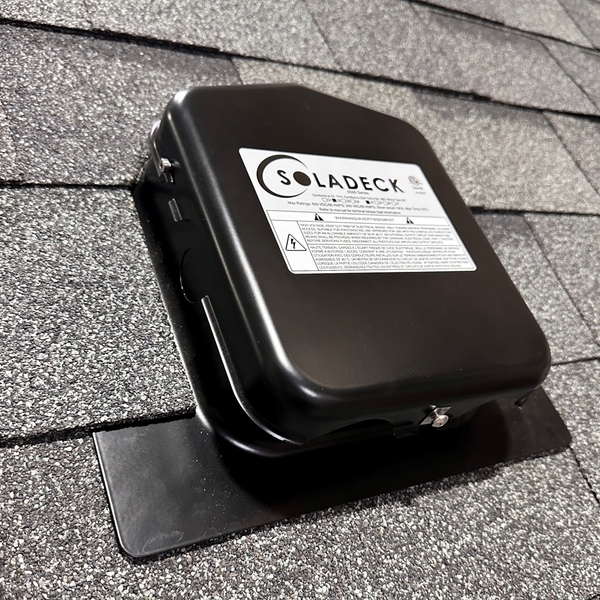

SolaDeck Roof Mounted PV Junction Box
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $59.90000 |
| EA | 3 | $54.45455 |
| EA | 6 | $49.91667 |
| EA | 12 | $46.07692 |
Add to Cart to Request Quote for Larger Qtys
Click image to enlarge
Item # 0599B
SolaDeck Roof Mounted PV Junction Box
- UM: EA
- Weight: 2.5000
- Brand: SOLADECK
- Base and cover stamped from galvanized steel
- 35mm din rail and ground block factory installed
- 2/12 – 12/12 roof slopes
- Slotted cover with one preinstalled set screw
- Four, 3/4" knockouts; one in the left and right sidewall and two in the bottom sidewall
- Five roof deck knockouts, size (3) 1/2", (1) 3/4" and (1) 1"
- ETL listed and labeled
- Conforms to the UL1741 standard, Nema Type 3R
- CSA C22.2 No. 290
- 600 VDC/80A, 240 VAC/80A
- Ambient temperature rating (-35°C) – (75°C)
Specifications
| Usage | Asphalt or Cedar Roof |
| Material | 20 Gauge G90 Galvanized Steel |
| Color | Power Coated Black |
| Approx Height (in) | 2.6 |
| Interior Space | 140 cubic inches |
| Maximum Voltage | 600 VDC/240 VAC |
| Maximum Current | 80 Amps |
| Enclosure Rating | NEMA Type 3R |
| Ambient Temperature Rating | -35 C to +75 C |
