Item # 0799-5B
SolaDeck Roof Mounted PV Junction Box
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $78.09091 |
| EA | 3 | $71.58333 |
| EA | 6 | $66.07692 |
| EA | 12 | $61.35714 |
Add to Cart to Request Quote for Larger Qtys

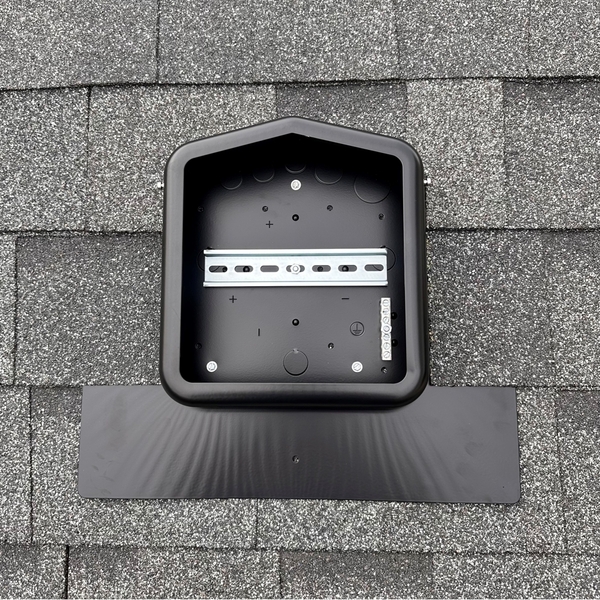

Click image to enlarge
Item # 0799-5B
SolaDeck Roof Mounted PV Junction Box
- UM: EA
- Weight: 9.2000
- Brand: SOLADECK
- Base and cover stamped from galvanized steel
- 7" Din rail and 5 position ground block factory installed
- 2/12 – 12/12 roof slopes

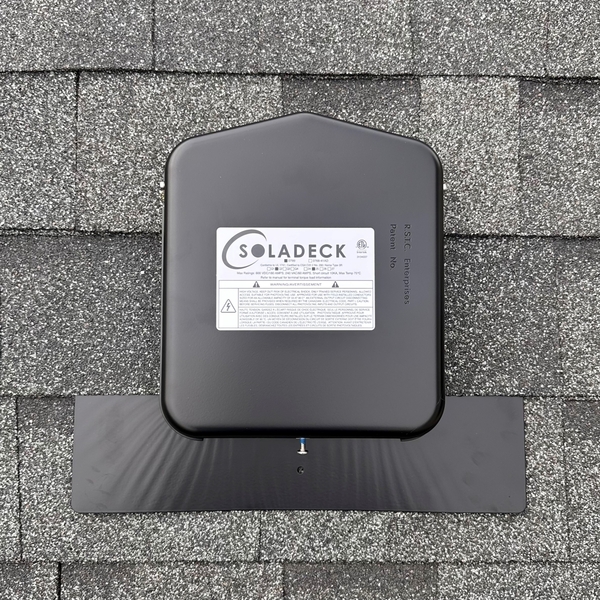

- Slotted cover with one preinstalled set screw

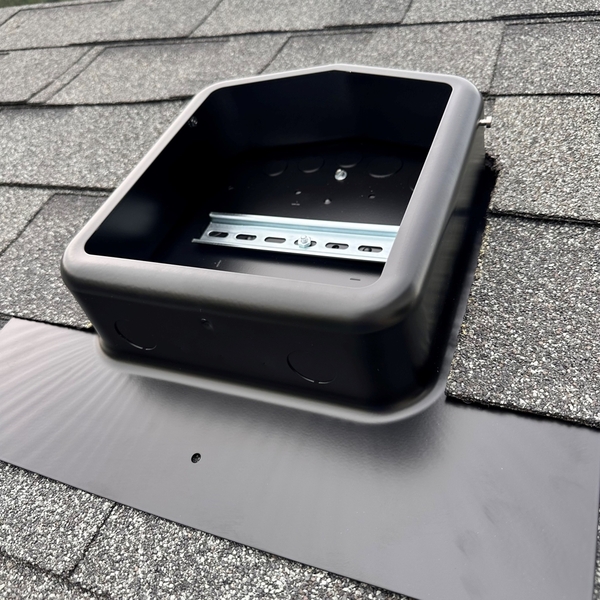

- Two, 3/4" holes in the bottom sidewall for conduit or fittings (UL listed plugs provided)
- Eight roof deck knockouts, size (6) 1/2", (1) 3/4" and (1) 1"
- ETL listed and labeled
- Conforms to the UL1741 standard, Nema Type 3R
- CSA C22.2 No. 290
- 600 VDC/115A, 240 VAC/60A
- Ambient temperature rating (-35°C) – (75°C)
Specifications
| Usage | Asphalt or Cedar Roof |
| Material | 18 Gauge G90 Galvanized Steel |
| Color | Power Coated Black |
| Approx Height (in) | 3.0 |
| Interior Space | 225 cubic inches |
| Maximum Voltage | 600 VDC/240 VAC |
| Maximum Current | 115 Amps DC/60 Amps AC |
| Enclosure Rating | NEMA Type 3R |
| Ambient Temperature Rating | -35 C to +75 C |
