Item # 10039
HDLSPTH-04 NATURAL
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $0.14551 |
| EA | 500 | $0.11081 |
| EA | 1,000 | $0.08899 |
| EA | 2,000 | $0.07500 |
| EA | 5,000 | $0.06716 |
Add to Cart to Request Quote for Larger Qtys

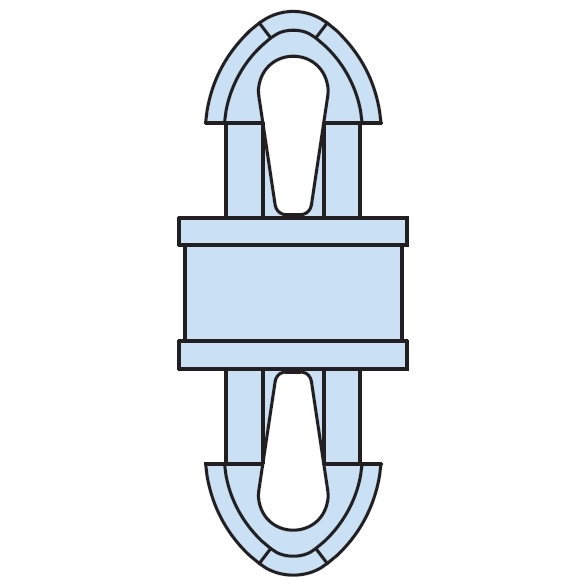

Click image to enlarge
Item # 10039
HDLSPTH-04 NATURAL
- UM: EA
- Weight: 0.0004
- Brand: HEYCO PRODUCTS
Specifications
| Description | HDLSPTH-04 |
| Color | Natural |
| Flammability Rating | 94V-2 |
| Maximum Thickness PCB (in) | .062 |
| Maximum Thickness PCB (mm) | 1.6 |
| Maximum Thickness Chassis (in) | .062 |
| Maximum Thickness Chassis (mm) | 1.6 |
| Mounting Hole Diameter PCB (in) | .098 |
| Mounting Hole Diameter PCB (mm) | 2.5 |
| Mounting Hole Diameter Chassis (in) | .098 |
| Mounting Hole Diameter Chassis (mm) | 2.5 |
| A: Spacing (in) | 0.250 |
| A: Spacing (mm) | 6.4 |
Documents
×
