Item # 13882
UTRG 500 V0 Black
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $0.32940 |
| EA | 1,000 | $0.24000 |
| EA | 2,000 | $0.18870 |
| EA | 5,000 | $0.15630 |
| EA | 10,000 | $0.13840 |
Add to Cart to Request Quote for Larger Qtys

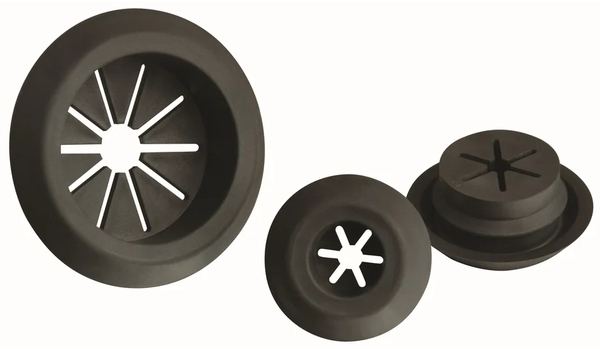

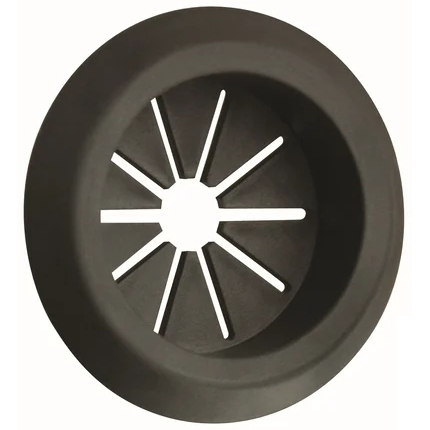

Click image to enlarge
Item # 13882
UTRG 500 V0 Black
- UM: EA
- Weight: 0.0014
- Brand: HEYCO PRODUCTS
- Flexible shutters adjust to accommodate and support any shape up to a maximum cable/bundle diameter of .28" (7.1 mm).
- Easily applied into hole by hand.
- Reliance of a UL 94 V-0 flammability rated material.
- Absorb vibration.
- Cushions and insulates cable, tubing, hoses or shafts.
- UL Pending
Specifications
| Description | UTRG 500 |
| Panel Thickness Range (in) | .063 - .094 |
| Panel Thickness Range (mm) | 1.6 - 2.4 |
| Material | TPE - Hardness 80 Shore A |
| Mounting Hole Diameter (in) | .500 |
| Mounting Hole Diameter (mm) | 12.7 |
| Max. Cable Diameter (in) | .28 |
| Max. Cable Diameter (mm) | 7.1 |
| A: Head Diameter (in) | .85 |
| A: Head Diameter (mm) | 21.6 |
| B: Overall Height (in) | .42 |
| B: Overall Height (mm) | 10.7 |
