Item # 13916

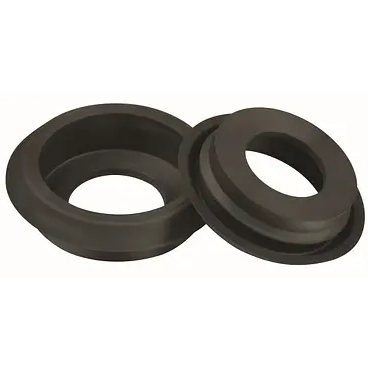

STRG 625-3 V0 Black
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $0.34310 |
| EA | 1,000 | $0.25000 |
| EA | 2,000 | $0.19650 |
| EA | 5,000 | $0.16280 |
| EA | 10,000 | $0.14420 |
Add to Cart to Request Quote for Larger Qtys
Click image to enlarge
Item # 13916
STRG 625-3 V0 Black
- UM: EA
- Weight: 0.0020
- Brand: HEYCO PRODUCTS
- Pass-through hole provides easy routing and protection through sharp-edged holes.
- Flexible material at ID provides a snug fit.
- Easily applied into hole by hand.
- Reliance on a UL 94 V-0 flammability-rated material.
- Absorbs vibration.
- Cushions and insulates cable, tubing, hoses, or shafts.
- UL Pending.
Specifications
| Description | STRG 625-3 |
| Panel Thickness Range (in) | .031 - .094 |
| Panel Thickness Range (mm) | 0.8 - 2.4 |
| Material | TPE - Hardness 80 Shore A |
| Mounting Hole Diameter (in) | .625 |
| Mounting Hole Diameter (mm) | 15.9 |
| A: Head Diameter (in) | .97 |
| A: Head Diameter (mm) | 24.6 |
| B: Inside Diameter (in) | .188 |
| B: Inside Diameter (mm) | 4.8 |
| C: Overall Height (in) | .42 |
| C: Overall Height (mm) | 10.7 |
Documents
×
