Item # 2298
UB 1750 BLACK
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $0.52150 |
| EA | 100 | $0.41720 |
| EA | 200 | $0.29800 |
| EA | 500 | $0.23178 |
| EA | 1,000 | $0.18964 |
| EA | 2,000 | $0.17383 |
| EA | 6,000 | $0.16046 |
| EA | 12,000 | $0.14900 |
| EA | 20,000 | $0.13907 |
Add to Cart to Request Quote for Larger Qtys
Click image to enlarge
Item # 2298
UB 1750 BLACK
- UM: EA
- Weight: 0.0145
- Brand: HEYCO PRODUCTS

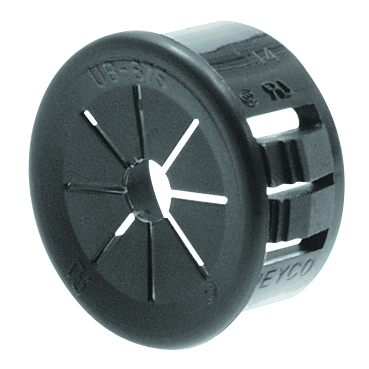

- Universal Bushing Item Number 2298 fits mounting hole diameter 1.750" (44.5 mm)
- Flexible shutters adjust to accommodate and support any shape from .125" (3.2 mm) to a maximum cable/bundle diameter of 1.38 (34.9mm).
- Absorb vibration and cushion and insulate cables, tubing, hoses or shafts.
- Locking fingers in fractional increments up to the maximum panel thickness 0.125 in (3.2 mm) thick.
- Fingertip pressure snap-locks the bushing into its mounting hole.
Specifications
| Description | UB 1750 |
| Color | Black |
| Panel Thickness Max. (in) | 0.125 |
| Panel Thickness Max. (mm) | 3.2 |
| Mounting Hole Diameter (in) | 1.750 |
| Mounting Hole Diameter (mm) | 44.5 |
| Max. Inside Dia. (in) | 1.38 |
| Max. Inside Dia. (mm) | 34.9 |
| A: Head Diameter (in) | 1.87 |
| A: Head Diameter (mm) | 47.5 |
| B: Overall Height (in) | 0.47 |
| B: Overall Height (mm) | 11.8 |
