Item # 2554
S 1000-9 BLACK
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $0.16714 |
| EA | 200 | $0.13000 |
| EA | 500 | $0.09750 |
| EA | 1,000 | $0.09000 |
| EA | 2,000 | $0.08357 |
| EA | 5,000 | $0.07800 |
| EA | 10,000 | $0.07313 |
Add to Cart to Request Quote for Larger Qtys

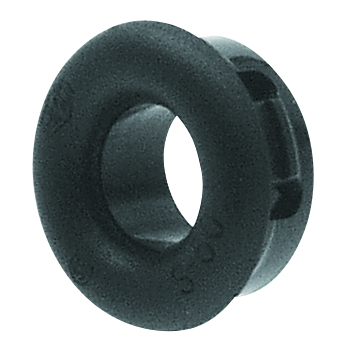

Click image to enlarge
Item # 2554
S 1000-9 BLACK
- UM: EA
- Weight: 0.0052
- Brand: HEYCO PRODUCTS
- Snap-In Smooth Bore Bushing Item Number 2554 fits mounting hole diameter 1.000" (25.4 mm)
- Extra internal insulating sleeve creates a smooth bore and prevents locking fingers from protruding into the ID of the Bushing.
- Large radius exit hole.
- Used to protect through-holes. Eliminate sharp edges so wires are protected.
- Absorb vibration, and cushion and insulate wires.
- Can be used as bushing for rotating shafts.
- Bushing inserts into mounting hole with fingertip pressure.
Specifications
| Description | S 1000-9 |
| Color | Black |
| Panel Thickness Max. (in) | 0.125 |
| Panel Thickness Max. (mm) | 3.2 |
| Mounting Hole Diameter (in) | 1.000 |
| Mounting Hole Diameter (mm) | 25.4 |
| A: Inside Diameter (in) | 0.60 |
| A: Inside Diameter (mm) | 15.2 |
| B: Head Diameter (in) | 1.19 |
| B: Head Diameter (mm) | 30.2 |
| C: Overall Height (in) | 0.52 |
| C: Overall Height (mm) | 13.1 |
