Item # 3030
561 3/8 90 ANGLE CONNECTOR
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $2.52440 |
| EA | 10 | $1.57775 |
| EA | 25 | $1.40244 |
| EA | 50 | $1.26220 |
| EA | 100 | $1.14745 |
| EA | 200 | $1.05183 |
| EA | 500 | $0.97092 |
| EA | 1,000 | $0.90157 |
| EA | 2,000 | $0.84147 |
| EA | 4,000 | $0.78888 |
Add to Cart to Request Quote for Larger Qtys

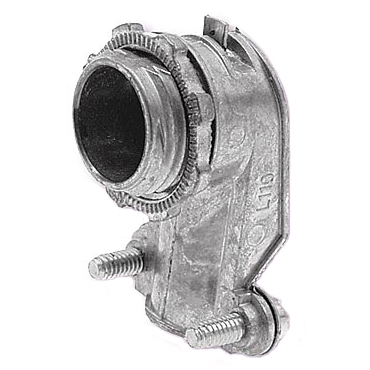

Click image to enlarge
Item # 3030
561 3/8 90 ANGLE CONNECTOR
- UM: EA
- Weight: 0.0880
- Brand: HEYCO PRODUCTS
Specifications
| Description | 561 |
| Connector Type | 90 Degree Angle Connector |
| Trade Size | 3/8 |
| Nominal Mounting Hole Dia. (in) | 0.875 |
| Nominal Mounting Hole Dia. (mm) | 22.2 |
| Will Fit Flexible Metallic Conduit | 3/8 |
| Will fit Armored | 14/2, 14/3, 14/4, 12/2, 12/3, 12/4, 10/2, 8/1, 6/1, 4/1 |
| Will Fit Non-Metallics Sheathed | n/a |
| A: Minimum Wire (in) | 0.45 |
| A: Minimum Wire (mm) | 11.4 |
| A: Maximum Wire (in) | 0.63 |
| A: Maximum Wire (mm) | 16.0 |
| B: Overall Length (in) | 1.81 |
| B: Overall Length (mm) | 46.0 |
Documents
×
