Item # 4440
DC 68-2-M/M BLACK
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $2.69771 |
| EA | 25 | $2.36050 |
| EA | 50 | $2.09822 |
| EA | 100 | $1.88840 |
| EA | 200 | $1.71673 |
| EA | 500 | $1.57367 |
| EA | 1,000 | $1.45262 |
| EA | 2,000 | $1.34886 |
| EA | 5,000 | $1.25893 |
Add to Cart to Request Quote for Larger Qtys

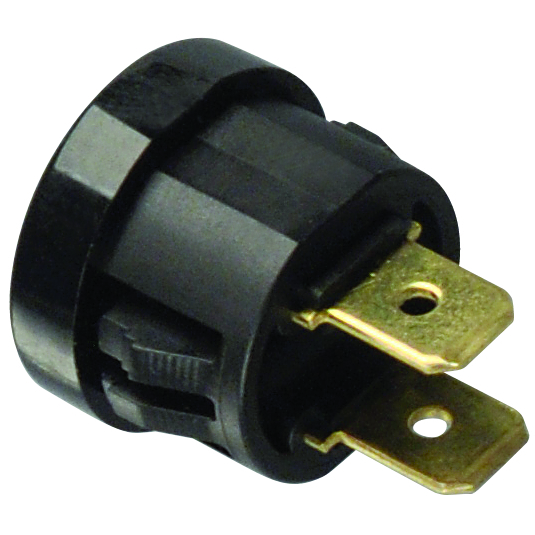

Click image to enlarge
Item # 4440
DC 68-2-M/M BLACK
- UM: EA
- Weight: 0.0100
- Brand: HEYCO PRODUCTS
- Small, snap-in polycarbonate receptacles for low cost, insulated, quick connection or disconnection of your wires, through panels, housings or detachable shrouds.
- Typical uses are data processing and vending machines, motors, power supplies, and controls.
- Non-polarized HEYConnects feature 1/4" (6.4 mm) internal brass male terminals, to mate with standard 1/4" (6.4mm) female Quick-Connects.
- Two-terminal HEYConnect bodies feature markings that correlate the terminals, front to back.
- Double-male configuration
- Rated for 300 Vac/Vdc @ 8.2 Amps.
Specifications
| Description | DC 68-2-M/M |
| Terminal Type | Double Male, Non-polarized |
| Number of Poles | 1 |
| Terminal Width (in) | 0.25 |
| Terminal Width (mm) | 6.4 |
| A: Mounting Hole Diameter (in) | 0.687 |
| A: Mounting Hole Diameter (mm) | 17.4 |
| B: To Prevent Rotation (in) | 0.640 |
| B: To Prevent Rotation (mm) | 16.3 |
| C: Maximum Panel Thickness (mm) | 0.125 |
| C: Maximum Panel Thickness (in) | 3.2 |
| D: Overall Length (in) | 0.94 |
| D: Overall Length (mm) | 23.9 |
