Item # F6N1.50BK-250
FLEXO F6 1-1/2" SPLIT BRAID
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $438.46154 |
| EA | 5 | $407.14286 |
| EA | 10 | $390.41096 |
| EA | 15 | $375.00000 |
Add to Cart to Request Quote for Larger Qtys
Click image to enlarge
Item # F6N1.50BK-250
FLEXO F6 1-1/2" SPLIT BRAID
- UM: EA
- Weight: 15.5000
Techflex® Item: F6N1.50BK

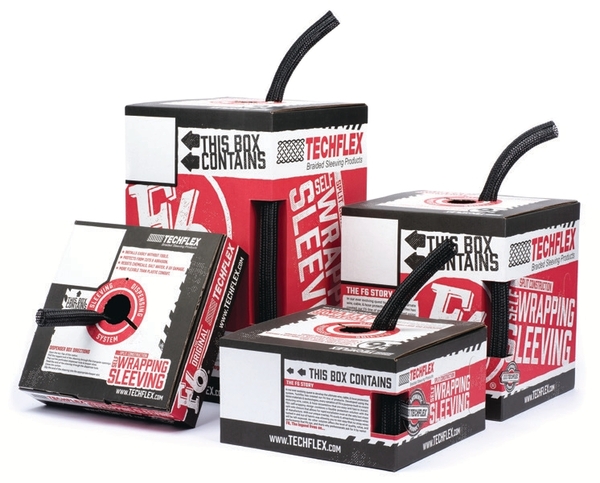

Flexo® F6® 1-1/2" Black - 250 ft box

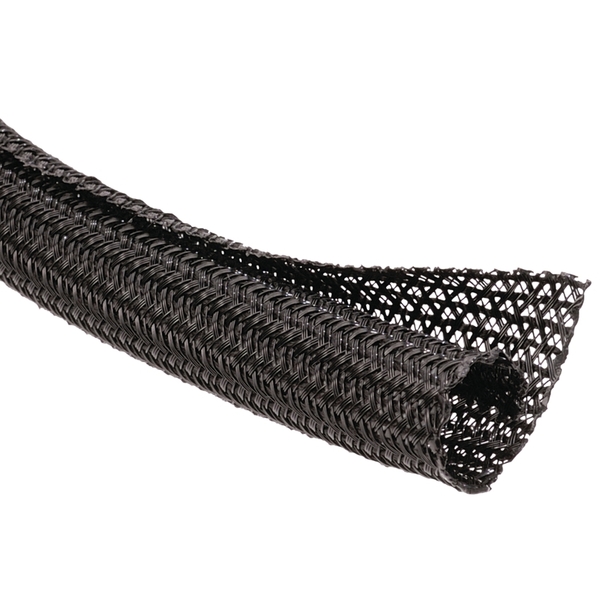

FLEXO® F6's® (F6N) unique split, semi-rigid braided construction makes it the ideal solution for situations where ease of installation is of primary importance. The lateral split allows the tube to open up to accommodate a wide variety of bundling requirements, while the the semi-rigid braid configuration simply closes around the entire installation without the need for any additional fasteners (Velcro, tape, etc.). The 10 mil PET braid is lightweight, quiet, and flexible.

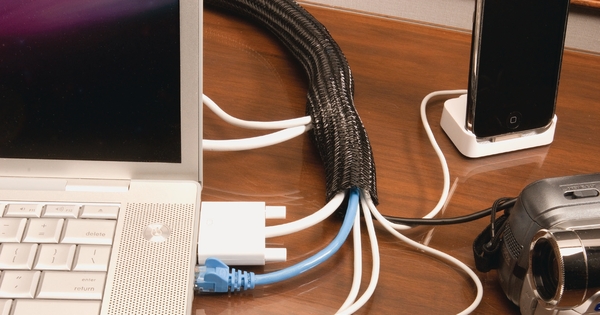

F6N will bend to a tight radius without distorting or splitting open, and unlike full rigid tubing, will not impair or affect the flexibility of harnesses. F6® allows for addition or removal of wires without disassembly.
The 25% edge overlap (at nominal diameter) allows for coverage around inline plugs, connectors, and splices.
Flexo® F6® 1-1/2" Black - 250 ft box
FLEXO® F6's® (F6N) unique split, semi-rigid braided construction makes it the ideal solution for situations where ease of installation is of primary importance. The lateral split allows the tube to open up to accommodate a wide variety of bundling requirements, while the the semi-rigid braid configuration simply closes around the entire installation without the need for any additional fasteners (Velcro, tape, etc.). The 10 mil PET braid is lightweight, quiet, and flexible.
F6N will bend to a tight radius without distorting or splitting open, and unlike full rigid tubing, will not impair or affect the flexibility of harnesses. F6® allows for addition or removal of wires without disassembly.
The 25% edge overlap (at nominal diameter) allows for coverage around inline plugs, connectors, and splices.

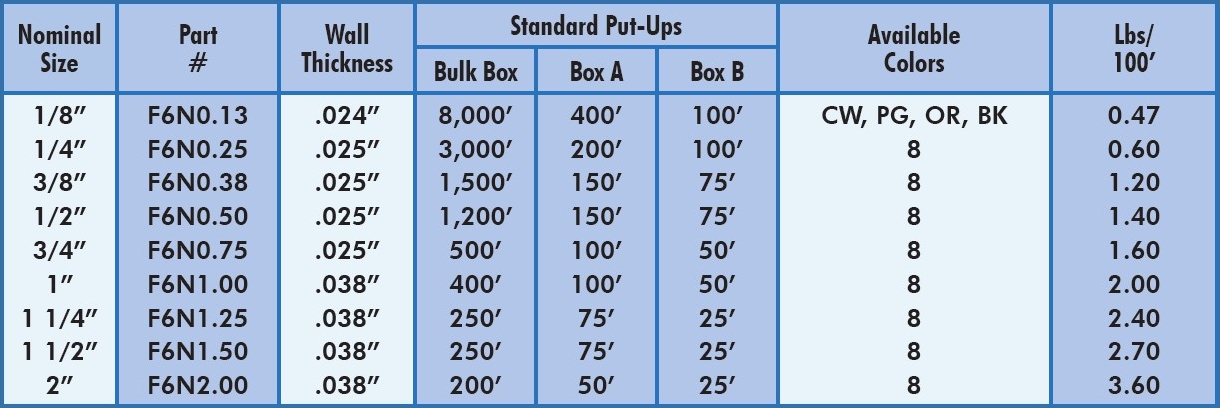

Specifications
| Description | FLEXO F6 1-1/2" SPLIT BRAID |
| Material | 10 mil PET |
| Color | Black |
| Nominal Size (in) | 1-1/2 |
| Wall Thickness (in) | .038 |
| Length (ft) | 250 |
| Temperature Range (F) | -94 F to +257 F |
| Temperature Range (C) | -70 C to +125 C |
