Item # JB-F.100
FORTIS 100 PV Junction Box- Composite Shingle
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $48.84615 |
| EA | 6 | $46.18182 |
| EA | 10 | $42.33333 |
| EA | 16 | $39.07692 |
| EA | 25 | $36.28571 |
Add to Cart to Request Quote for Larger Qtys
Click image to enlarge
Item # JB-F.100

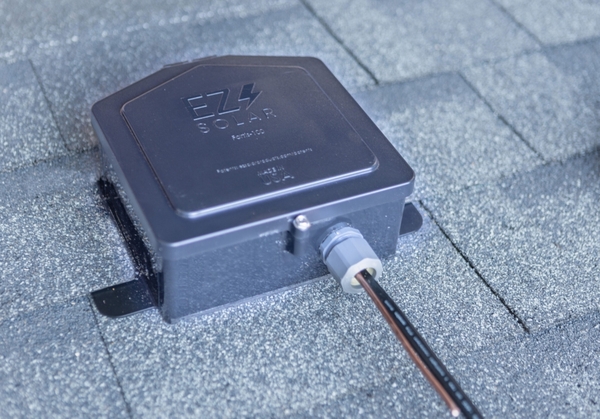

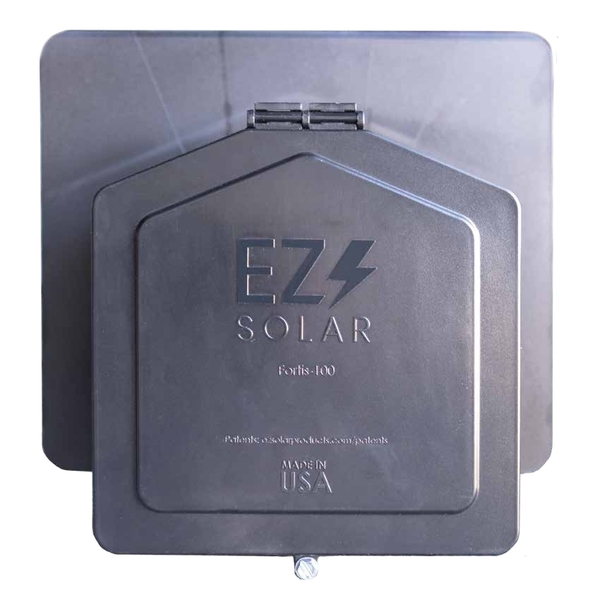

FORTIS 100 PV Junction Box- Composite Shingle
- UM: EA
- Weight: 2.0000
- Brand: EZ SOLAR
The EZ Solar FORTIS™ offers a simplified solution for composition shingle roofs. EZ Solar products provide installers with maximum flexibility with a proven box that is guaranteed to last 25+ years.
- Captive Deck Screws

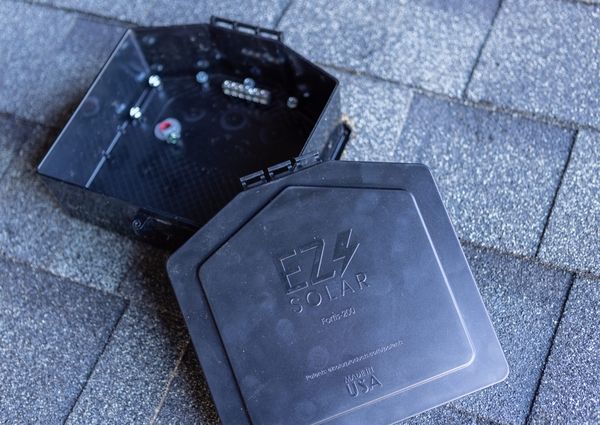

- Hinged Lid with Single Screw
- Fast and Easy Installation
- High Quality, Durable Product
- Proudly made in the USA
Specifications
| Usage | Composition/Asphalt Shingle |
| Material | Polycarbonate w/ UV Inhibitors |
| Interior Space | 100 cubic inches |
| Maximum Voltage | 1500 DC / 480 AC |
| Maximum Current | 80 Amps |
| Allowable Wire | 14 AWG - 6 AWG |
| Enclosure Rating | Type 3R |
| Ambient Operating Conditions | -35 C - +75 C |
Documents
×
