Item # JB-T

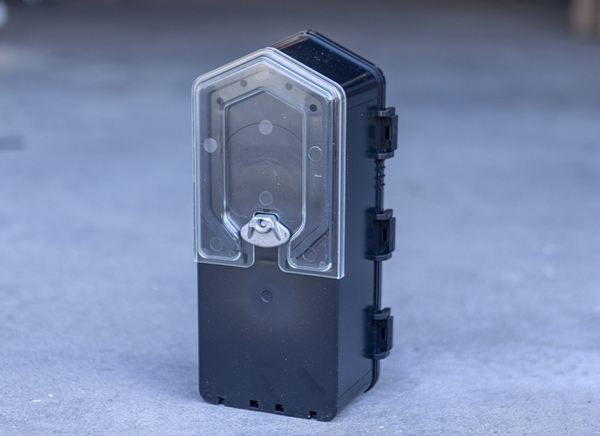

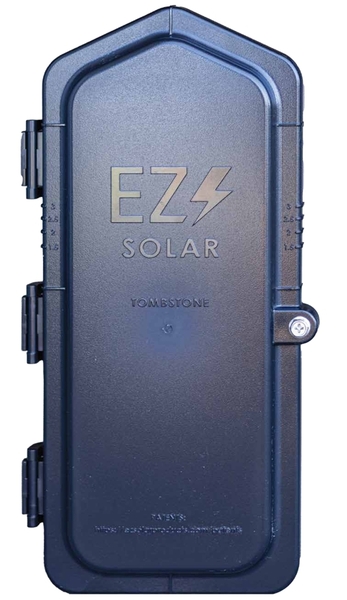

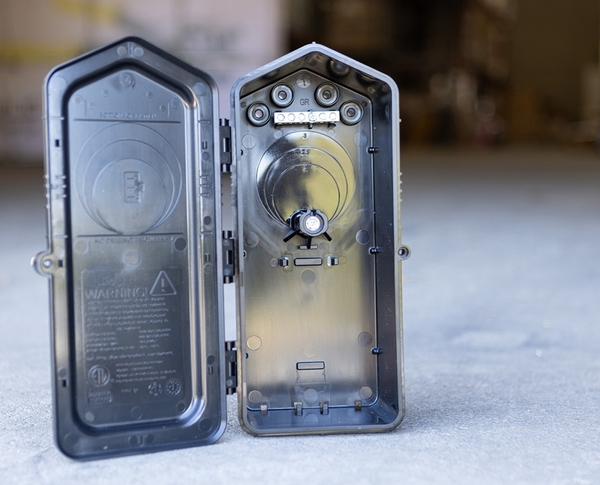

TOMBSTONE PV Junction Box - Metal Roofs
Click image to enlarge
Item # JB-T
TOMBSTONE PV Junction Box - Metal Roofs
- UM: EA
- Brand: EZ SOLAR

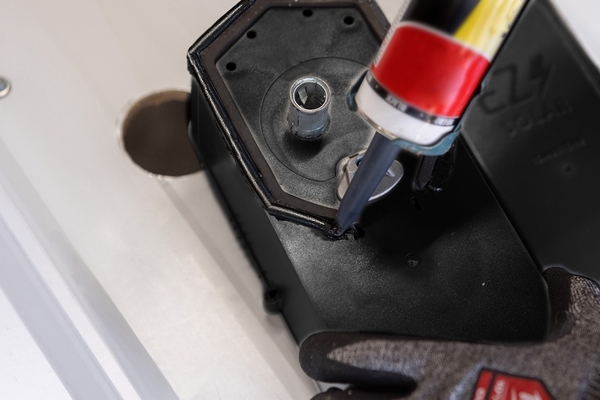

The EZ Solar Tombstone™, engineered for metal roofs, delivers clean, code-compliant conduit penetrations. Its proprietary installer-tested design fastens directly to sheeting or structural members.
- Versatile Installation
- Weatherproof & Durable
- Eliminates Field Fabrication
- Easy on Wires. Easy on Hands.

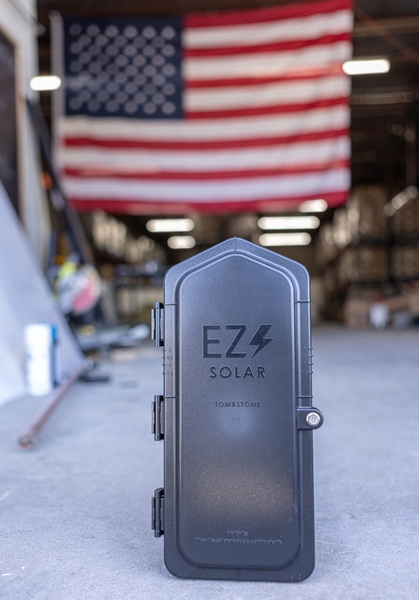

- Proudly made in the USA
Specifications
| Usage | Metal Roofs |
| Material | Polycarbonate w/ UV Inhibitors |
| Interior Space | Unspecified |
| Maximum Voltage | 1,500 Volts |
| Maximum Current | 120 Amps |
| Allowable Wire | 14 AWG - 6 AWG |
| Enclosure Rating | Type 3R |
| Ambient Operating Conditions | -35 C - +75 C |
Documents
×
