Item # 13872
STRG 1500 V0 BLACK
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $1.56540 |
| EA | 1,000 | $1.14090 |
| EA | 2,000 | $0.89680 |
| EA | 5,000 | $0.74290 |
| EA | 10,000 | $0.65800 |
Add to Cart to Request Quote for Larger Qtys
Click image to enlarge

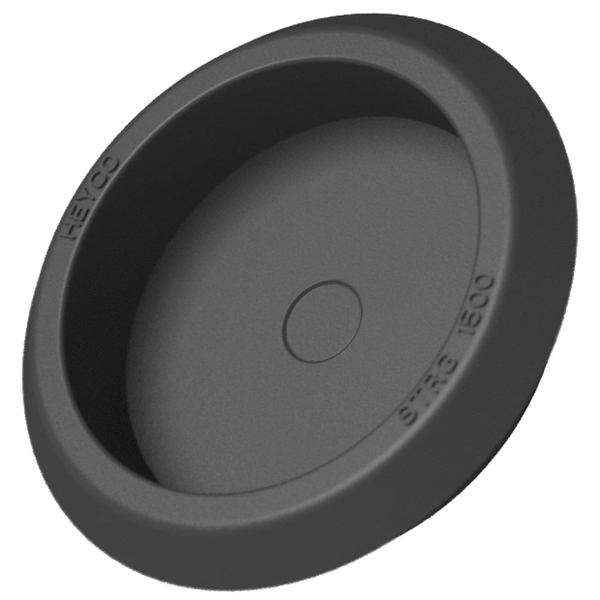

Item # 13872
STRG 1500 V0 BLACK
- UM: EA
- Weight: 0.0054
- Brand: HEYCO PRODUCTS
- Plug holes with the confidence of an IP X5 rating.
- Easily applied into hole by hand for secure seal.
- Reliance of a UL 94 V-0 flammability rated material.
- Piercable to allow for single, or multiple, cable pass through.
- Starter Hole required, and eases cable insertion.
- Multiple holes possible with starter hole of 50% of cable diameter.
- Once pierced, no longer IP X5 rated, but airflow, particulate and water pass-through is deterred.
- UL Pending
Specifications
| Description | STRG 1500 |
| Panel Thickness Range (in) | .063 - .125 |
| Panel Thickness Range (mm) | 1.6 - 3.2 |
| Material | TPE – Hardness 80 Shore A |
| IP Rating (Unpierced) | IP 5X |
| Mounting Hole Diameter (in) | 1.500 |
| Mounting Hole Diameter (mm) | 38.1 |
| Maximum Cable Diameter (in) | 0.68 |
| Maximum Cable Diameter (mm) | 17.3 |
| Starter Hole Dia. (in) | 0.500 |
| Starter Hole Dia. (mm) | 12.7 |
| A: Head Diameter (in) | 1.85 |
| A: Head Diameter (mm) | 47.0 |
| B: Overall Height (in) | 0.42 |
| B: Overall Height (mm) | 10.7 |
